320 Watt FB288 LM301H 3500k + 660nm + UV +IR LED Fusion Board Light DIY Kit

320 Watt FB288 LM301H 3500k + 660nm + UV +IR LED Fusion Board Light DIY Kit

Complete Kit
320 Watt FB288 X3 LM301H 3500k + 660nm + UV +IR LED Light

Save 29% Save 29%
$419.99 CAD
$419.99 CAD - $419.99 CAD
$419.99 CAD
$299.99 CAD
$299.99 CAD - $299.99 CAD
$299.99 CAD
SKU FB288X3-3500K

Product Description :

Product Name 320W Fusion Board
Spectrum 3500K, 660nm, UV, IR LEDs
Substrate Material Aluminum PCB
Thickness 1.6mm
Smallest aperture 0.003"
Surface treatment HASL
Modle PCB Board
Driver MW HLG-320H-48AB
LED QTY& Type 756pcs SAMSUNG LM301h 84pcs Epistar 660nm 12pcs UV 12pcs IR
Current: 500mA-2700mA
Power 320W
Lumens 200 lm/W (64,000lm)
Voltage 48V
Size 37.48" X 7.68"
Conductivity 1.0/W conductivity
Coverage Area 5' x 5' Veg & 4' x 4' Flower
Weight 18.3 lbs
Mounting Height Veg: 24" & Flower: 12-18"
Warranty 1-Year Warranty


What included in a full set (FB288-LM301H V3)

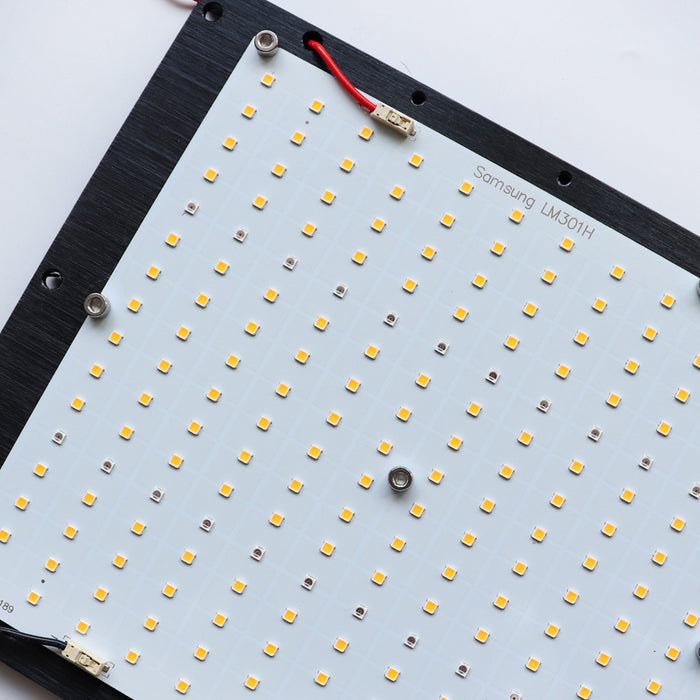

FB288 Board(16S18P), 3pcs;
Heatsink: 940*195*10mm x 1 (heatsink)
Driver: MW HLG-320H-48AB
Waterproof Connector;
Solderless Potentiometer;
Plug wire+Wago blocks+Hanging Rope+Screws

Everything you need to get started, just plug and grow.

Recommended for:

  • Grow tents
  • Grow rooms
  • Large indoor grows
  • Vegetative growth and/or flowering
  • Full-cycle growing from seedling to flower
  • Soil, hydroponic, aeroponic, or aquaponic systems
