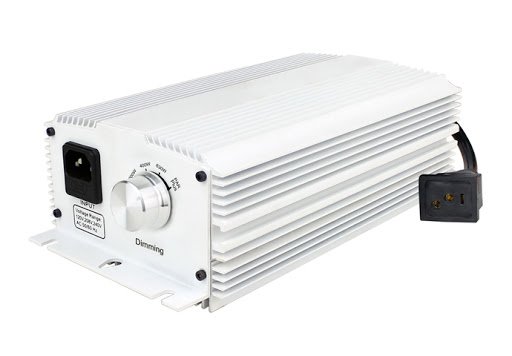

Product Description :

• Low frequency, square wave, soft start with short-circuit/circuit overheat/lamp-failure protection
• Intelligent source controller with auto-adapt light decay technology
• Can control luminous decay of any CMH bulbs and keep lumen maintenance rate higher than 95% at 20,000 hour
• Ignition distance is up to 66 feet (20 meters)
• Rated life of 50,000 hours
• 6’ – 120V power cord included
• Suitable for Double Ended CMH Bulbs (DE)

SPECIFICATIONS

• Power: 630W
• Suitable for Double Ended CMH Bulbs (DE)
• Input Voltage (AC): 120V/208V/240V, 50/60Hz
• Line Current: 5.72A@120V - 3.26A@ 208V - 2.84A@240V
• AC Inrush Current (Max): Cold start, 50A/230V
• Rated Power: 630W
• Output Voltage (AC): 100V
• Light Decay Control Attenuation: <5%/20000h
• Power Factor (PF): >0.99
• THD (Input): <6%
• Efficiency: >91%@240V
• Operating Frequency: 140~160Hz
• Trigger Voltage: 6KV (Max)/li>
• Ballast Power Dissipation: 25W
• Lamp Wire Length (Max): >66 feet/20 meters (16 gauge lamp wire)
• Protection Function: Protection of short-circuiting, open-circuit, over-voltage, under-voltage, over-current, hot lamp startup, lightning, overheat, and lamp failure with lamp life warning
• Storage: Ballast should be stored in dry environment with temperature -22ºF/-30ºC to +104ºF/+40ºC
• Unit Dimensions: 4.875.0” L x 15.0" W x 3.5” H
• Shipping Box Dimensions: 7.375.125" L x 13.75" W x 4.5” H
• Unit Weight: 6.11 lb
• Shipping Box Weight: 7.44 lb

CMH Spectrum Comparison

\

CMH SQUARE WAVE
