Product Description :

Ballast Specifications

• Power: 315W
• Input Voltage (AC): 120V/208V/240V, 50/60Hz
• Line Current: 2.83A@120V - 1.63A@ 208V - 1.42A@240V
• AC Inrush Current (Max): Cold start, 50A/230V
• Rated Power: 340W
• Output Voltage (AC): 100V
• Light Decay Control Attenuation: <5%/20000h
• Power Factor (PF): >0.99
• THD (Input): <6%
• Efficiency: >91%@240V
• Operating Frequency: 140~160Hz
• Trigger Voltage: 6KV (Max)/li>
• Ballast Power Dissipation: 25W
• Lamp Wire Length (Max): >66 feet/20 meters (16 gauge lamp wire)
• Protection Function: Protection of short-circuiting, open-circuit, over-voltage, under-voltage, over-current, hot lamp startup, lightning, overheat, and lamp failure with lamp life warning
• Storage: Ballast should be stored in a dry environment with temperature -22ºF/-30ºC to +104ºF/+40ºC
• Low frequency, square wave, soft start with short-circuit/circuit overheat/lamp failure protection
• Intelligent source controller with auto-adapt light decay technology
• Can control luminous decay of any CMH bulbs and keep lumen maintenance rate higher than 95% at 20,000 hour
• Ignition distance is up to 66 feet (20 meters)
• Rated life of 50,000 hours
• 6’ – 120V power cord included
• 1 Year Bumper to Bumper Warranty
• cETL Listed Ballast

*Do Not use any ballasts with flip boxes, these cause power leakage into the ballast that will cause them to fail

• Product: Vertizontal (Horizontal Or Vertical) Parabolic Reflector 42"
• Measures 42" long 16" tall
• Includes light socket and 15' cord
• Standard universal type cord connector
• Designed to exact standards for Indoor Gardening
• Compatible with Magnetic and Digital Ballasts
• Accepts all sizes MH and HPS bulbs
• Vertical / Horizontal mounting options
• Lightweight
• Wide even light distribution
• cETL Listed Reflector

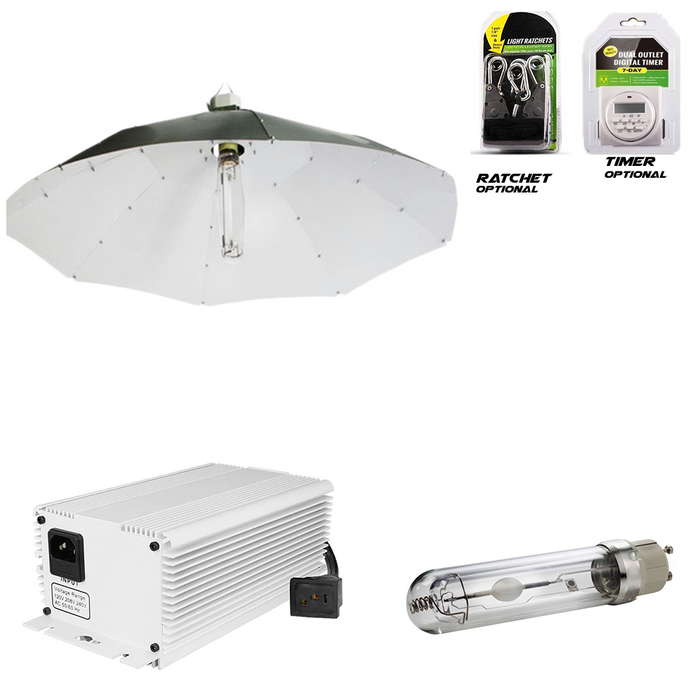

What's in the box:

• 315W Fusion Bright Low-Frequency CMH Ballast (cETL Listed)
• Power Cord for ballast (120V) *Household outlet
• Reflector with reflector cord and socket (cETL Listed)
• 315W CMH Bulb (your choice of spectrum and type)
• Rope Ratchet (*Optional you must select this when adding it to the cart)
• 7 Day Digital Timer (*Optional you must select this when adding it to the cart)

CMH Spectrum Comparison

\

CMH SQUARE WAVE
